CONtura Pro Concealed Door and Frame with Factory Finished Door

Name: CONtura Pro Concealed Door and Frame with Factory Finished Door
Brand: Concealed-Doors.com
Price: 1799.0 USD
Availability: InStock

(38)

Get the best price now!

~~$2,159.00 USD~~ $1,799.00 USD

SAVE 16%

Quick 30 Minute Installation

Incredible Quality

Unmatched Customization

Usually ships within 2 - 3 weeks - Shipping From $99

1

Engineered in Germany

Description

In interior design, the devil’s in the details—and one of the most overlooked is the door frame. On a conventional door, the outer casing stays visible and disrupts the flow of a room. With CONtura Pro, that casing disappears. CONtura Pro is a modern, trimless, flush-to-wall door system that brings the door leaf perfectly level with the wall, so the transition is nearly invisible and the space feels larger and calmer. It’s made to order to your specs—think sizes, handing/swing, and hardware prep—and you can choose paint-ready or prefinished door options for a factory-smooth finish. Each kit includes everything needed for a seamless install. If you’re looking to take your space to the next level, CONtura Pro is the finishing touch your home deserves.

Measurement Guide

Measure rough opening height from finished floor (FFL) at multiple points

1) Measure the Rough Opening Height

Measure from the top of the finished floor (FFL) in the rough opening at least three times (left, center, right). Record the smallest value. If floor coverings aren’t installed yet, deduct their planned thickness first.

Measure rough opening width at multiple points and take the smallest

2) Measure the Rough Opening Width

Measure the RO width at the top, middle, and bottom. Use the smallest value. These smallest height/width values are your working RO.

Measure wall thickness at several points; use smallest value

3) Measure Wall Thickness

Measure wall thickness at several locations and use the smallest value. From ≥ 3 15/16" wall thickness, SlimFrame can be used for drywall (stud) and masonry. Thicker walls can be adjusted on site for a flush, stable installation.

Calculate frame outside dimensions from the rough opening

4) Frame Outside Dimensions

A) Frame outside width = smallest RO width − 1/8" (clearance)

B) Frame outside height = smallest RO height − 3/8" (clearance)

Calculate door slab size from smallest measured values

5) Door Slab Size (Finished Leaf)

A) Door slab width = smallest measured width − 3 3/8"

B) Door slab height = smallest measured height − 2 1/4"

Maximum door slab width: 43 1/4"
Maximum door slab height: 106 1/4"

Compute clear opening (passage) dimensions

6) Clear Opening (Finished Passage)

A) Clear opening width = smallest measured width − 4 1/16"

B) Clear opening height = smallest measured height − 2 3/8"

Technical Information

The CONtura PRO frame is custom-built to your specifications, ensuring a perfect fit for your project. Designed for maximum flexibility on site, it can be rotated during installation to suit any configuration – left- or right-hinged, push or pull – without the need for extra parts. Every frame is supplied with all necessary materials, including a spacer kit to match common drywall thicknesses, guaranteeing a flush, stable installation across most standard wall types.

Dimensions

All listed dimensions refer to the door leaf size.

Rough opening dimensions:

With Header:
Rough Height = door height + 2-3/8"
Width = door width + 3-1/2"

Without Header:
Rough Height = door height + 3/8"
Width = door width + 3-1/2"

Downloads

Installation Instructions

Measurement Guides

Concealed Frame

CONtura Pro flush-with-the-wall door system

Thoughtful Engineering

CONtura Pro is the perfect choice for anyone looking for a flush, wall-aligned interior door. It’s made from an extruded, then primed aluminum profile. By default, the side-visible jamb profiles (visible when the door is open) are powder-coated in RAL 9016. On site, you can paint the primed profiles in any color you like.

Built for Almost Any Installation

The jamb is designed for door leaves 1-9/16" thick. CONtura Pro works with walls framed in 2-5/8" studs and common drywall builds — single 1/2", double 1/2", or single 5/8". The frame can be adjusted on site for your chosen build-up, and all required milling is pre-manufactured to save jobsite time.

CONtura Pro installed in various wall types

Premium Jamb Profiles

Innovative plug-in connections speed up installation. The primed, high-quality visible surface is an ideal base for a wide range of paints and provides excellent mechanical adhesion for polymer-modified joint compound. The assembly works beautifully for crack-free plastering in masonry or fast taping and mudding in drywall.

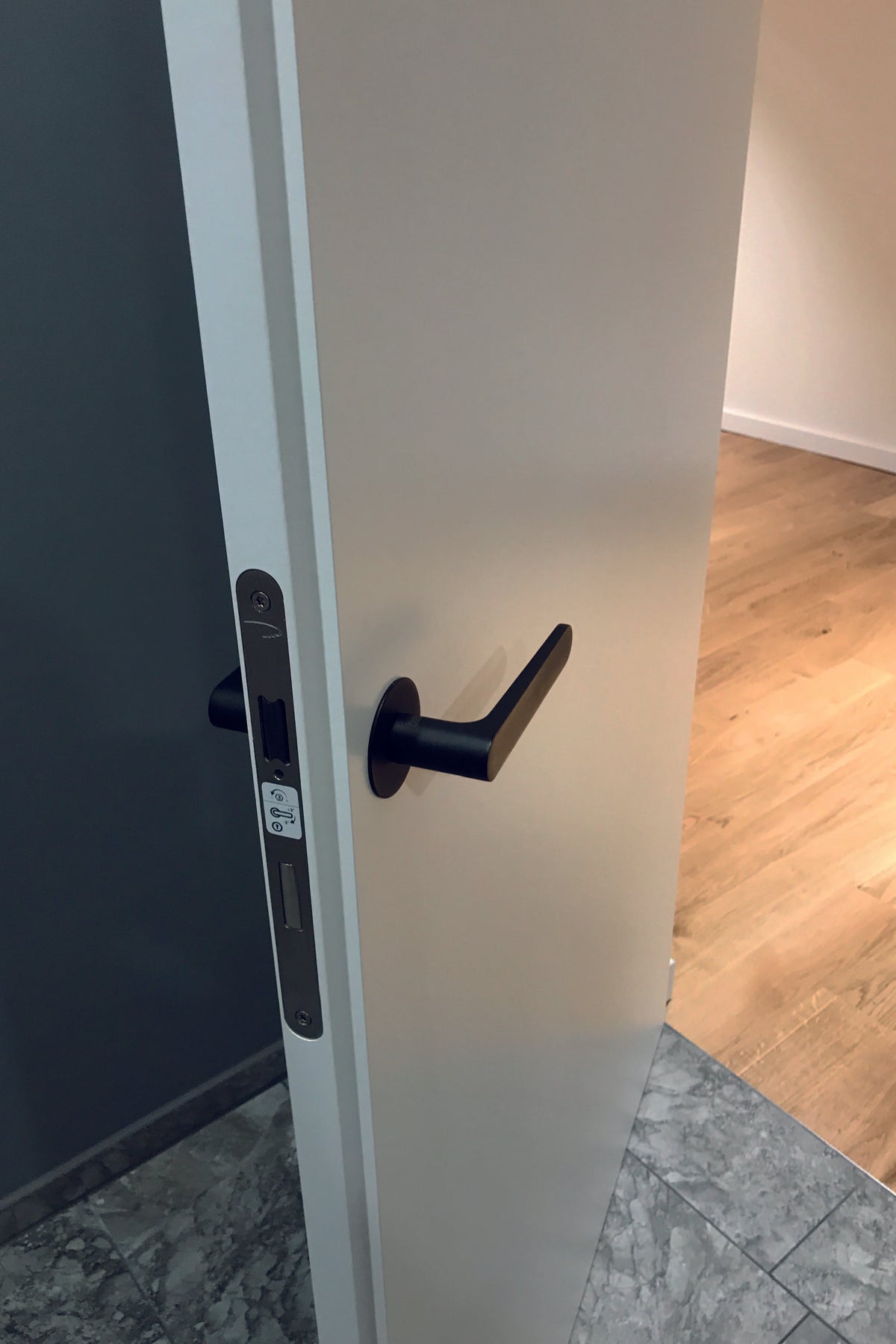

Magnetic Latch with Magnetic Strike

Our magnetic latch is sleek and highly functional, delivering exceptional closing comfort. When the door is open, the latch sits flush with the lock case; on closing, magnets draw it into the frame. This prevents the latch from striking the profile, resulting in a quiet, smooth close. It’s stylish, durable, and great for both commercial and residential use.

Magnetic latch and strike for quiet closing

Concealed Hinges

Concealed hinges are included. With the door closed they’re completely hidden, and even when open they’re far less noticeable than traditional surface-mounted hinges. Doors up to 88-5/8" tall include two hinges; taller doors include three.

Alignment Blocks for Easier Install

Every frame set includes OSB spacer blocks to streamline precise positioning. The milled blocks fit the profile exactly to keep the jamb parallel during installation.

OSB spacer blocks for precise installation

Door Finishes

Ordering Process

	1. Add products to your cart Buying doors has never been easier. Browse our selection, compare options, and build your cart right from the couch. Save your cart for later or share it with your team or family. Create an account for easy saving, or check out as a guest—your choice.
	2. Free advice from product experts Questions about sizing, hardware, or finishes? We’re happy to help. Email info@concealed-doors.com or call (954) 869-4005. We’re available Monday through Friday, 9:00 AM–5:00 PM EST. Prefer a written quote? Request one anytime—no obligation.
	3. Place your order Review your cart, proceed to checkout, enter shipping details, and choose your payment method. You can check out as a guest or create an account for easier tracking. As soon as you submit your order, our team gets to work.
	4. Personalized order check Our specialists double-check every order before it moves forward—dimensions, swing, hardware, and more. If anything needs clarification, we’ll reach out to confirm the details with you.
	5. Production & shipping Once any technical questions are resolved and payment is confirmed, your order enters production. Our flush frames are typically in stock. Door slabs are made to your specifications and take a bit longer before they ship.
	6. Delivery We typically ship in two stages via freight carrier (curbside delivery). Frames usually ship within 3–24weeks of your order. Custom door slabs and remaining accessories follow in about 6–10 weeks. This lets your contractor install frames during rough-in and hang the finished slabs later.
	7. Inspect your shipment The freight carrier will call 24–48 hours before delivery to schedule a delivery window. Please inspect cartons and products at delivery. If you see any visible damage, note it on the delivery receipt with the driver and contact us right away so we can assist.
	8. Store before installation If there’s a gap between delivery and install, store products in a dry, conditioned space, flat on a level surface. Wood doors can expand or warp if exposed to moisture—proper storage keeps everything straight and installation-ready.

Gallery

FAQ

Which wall constructions can CONtura products be used in?

CONtura products are engineered to fit all typical interior walls, from wood or metal stud framing (2x3, 2×4, 2x6 and metal equivalents) to a variety of drywall builds. Whether your walls are prepared with 1/2" or 5/8" drywall, single or double layered, the CONTura system integrates seamlessly without extra fuss.

What door comes with CONtura Pro?

The kit always includes a matching 1‑9/16″‑thick, engineered‑wood‑core door. You can choose primed (ready to paint) or factory‑finished options.

Is the CONtura Pro DIY‑friendly?

Yes. The package includes detailed, step‑by‑step instructions and all the specialized hardware you’ll need. If you have the usual homeowner tool kit - think: drill, level, and tape measure. You’re set to complete the installation and fine‑tune the alignment on your own.

Are custom sizes available?

Yes, the CONtura Pro can be configured to exact door sizes.

How do I plan my doors?

We provide comprehensive drawings and measuring instructions in our Download Section. If you need assistance, feel free to reach out and our team will help you with every step along the way.

I ordered a primed door. How do I finish it?

Primed doors are made to be painted with standard interior paint or enamel. You can also cover them with wallpaper. In this case, please make sure both sides of the door are covered at the same time to avoid warping.
